Docker Registry App¶

About¶

Docker Registry is used for storing and distributing Docker and OCI images using the OCI Distribution Specification.

Questions? Ask in the Cloudron Forum - Docker Registry
Docker Registry docs
Docker Registry issue tracker

User Management¶

Cloudron Directory¶

When Cloudron user management is enabled, simply use the Cloudron username and password to login.

$ docker login registry.cloudron.space
Username: girish
Password:
Login Succeeded

Then, you can push images like so:

$ docker push registry.cloudron.space/hello-world
Using default tag: latest
The push refers to repository [registry.cloudron.space/hello-world]
e07ee1baac5f: Pushed
latest: digest: sha256:f54a58bc1aac5ea1a25d796ae155dc228b3f0e11d046ae276b39c4bf2f13d8c4 size: 525

Without Cloudron Directory¶

When Cloudron user management is disabled, the registry is setup with no authentication. The main use case for this is to have the registry authenticate with an external provider such as GitLab instead of Cloudron. See the GitLab section below on how to set this up.

GitLab Integration¶

The following steps can be used to setup GitLab container registry.

Create a volume named registry-shared.
Attach volume name registry-shared to both GitLab and Docker Registry apps. Be sure to uncheck the Read Only checkbox.
Create folders containers and certs on the host filesystem inside the path that is assigned to the registry-shared volume.
Run the following commands inside the certs folder:

openssl req -nodes -newkey rsa:2048 -keyout registry-auth.key -out registry-auth.csr -subj "/CN=gitlab-issuer"
openssl x509 -in registry-auth.csr -out registry-auth.crt -req -signkey registry-auth.key -days 365000
chmod 777 registry-auth.key registry-auth.crt registry-auth.csr

Modify the permissions from root to cloudron inside the Docker Registry app for the created folders and files.

chown -R cloudron:cloudron /media/registry-shared/

Modify /app/data/config.yml of the Docker Registry app using the File manager by altering or adding the auth part to resemble the following:

auth:
  token:
    realm: https://<GITLAB_HOST>/jwt/auth
    service: container_registry
    issuer: gitlab-issuer
    rootcertbundle: /media/registry-shared/certs/registry-auth.crt

Change the 'rootdirectory' value inside the same config file to:

/media/registry-shared/containers

Save the file and restart the app.

Modify /app/data/gitlab.yml of the GitLab app by adding the following lines (some of them might already be there, so skip them):

production:
  <<: *base

  registry:
    enabled: true
    host: <DOCKER_REGISTRY_HOST>
    port: 443
    api_url: https://<DOCKER_REGISTRY_HOST>
    key: /media/registry-shared/certs/registry-auth.key
    path: /media/registry-shared/containers
    issuer: gitlab-issuer

Save the file and restart the app.

For Gitlab pipelines use the $CI_REGISTRY_PASSWORD and $CI_REGISTRY_USER for authentification with the registry.

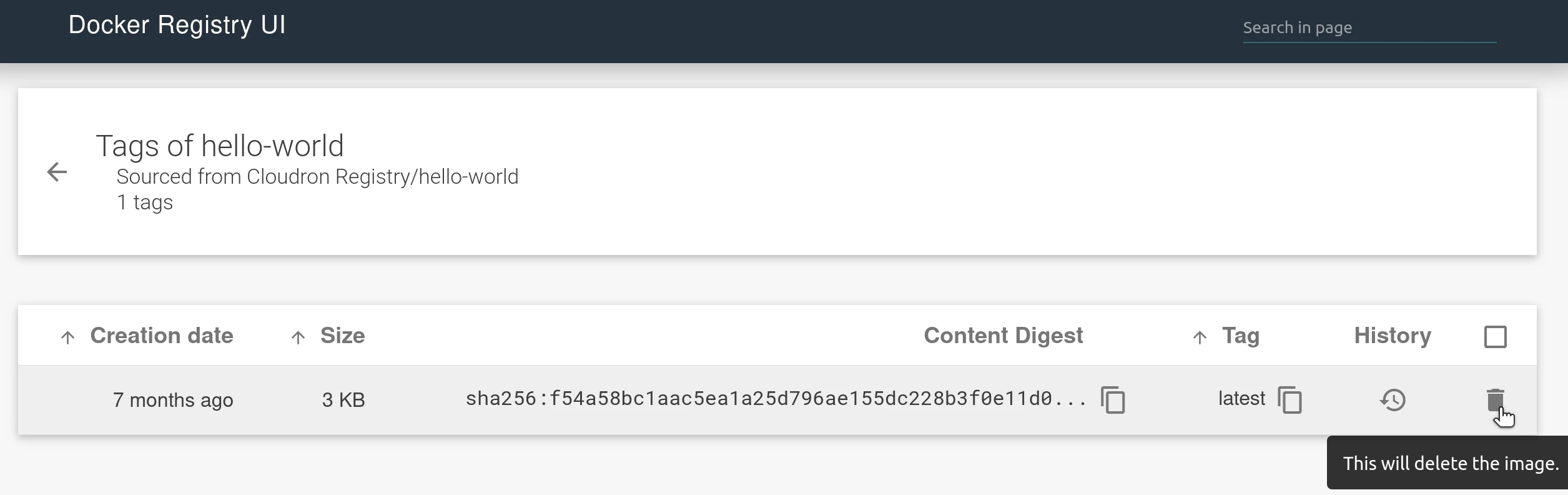

Delete Tag¶

To delete a tag, use the delete button in the UI.

While the tag gets deleted immediately, the image blobs are not. The app is configured to run the Garbage collector every day to remove dangling blobs. To remove them immediately, open the Web Terminal and run:

/usr/local/bin/gosu cloudron:cloudron /app/code/registry garbage-collect /app/data/config.yml

Delete Repository¶

All repositories are stored in the /app/data/storage/docker/registry/v2/repositories/ folder.

To delete a repository, delete the corresponding repository folder using the Web Terminal or the File Manager.

While the repository gets deleted immediately, the image blobs are not. The app is configured to run the Garbage collector every day to remove dangling blobs. To remove them immediately, open the Web Terminal and run:

/usr/local/bin/gosu cloudron:cloudron /app/code/registry garbage-collect /app/data/config.yml

Delete Images¶

To enable deletion of images via the UI, enable the storage.delete.enabled setting in /app/data/config.yml using the File manager. After enabling it, restart the app and you should see a button in the UI to delete images.

Custom UI configuration¶

Docker Registry UI has many customizable settings. They can be set in /app/data/registry-ui.sh using the File manager.

Be sure to restart the app after making any changes.
